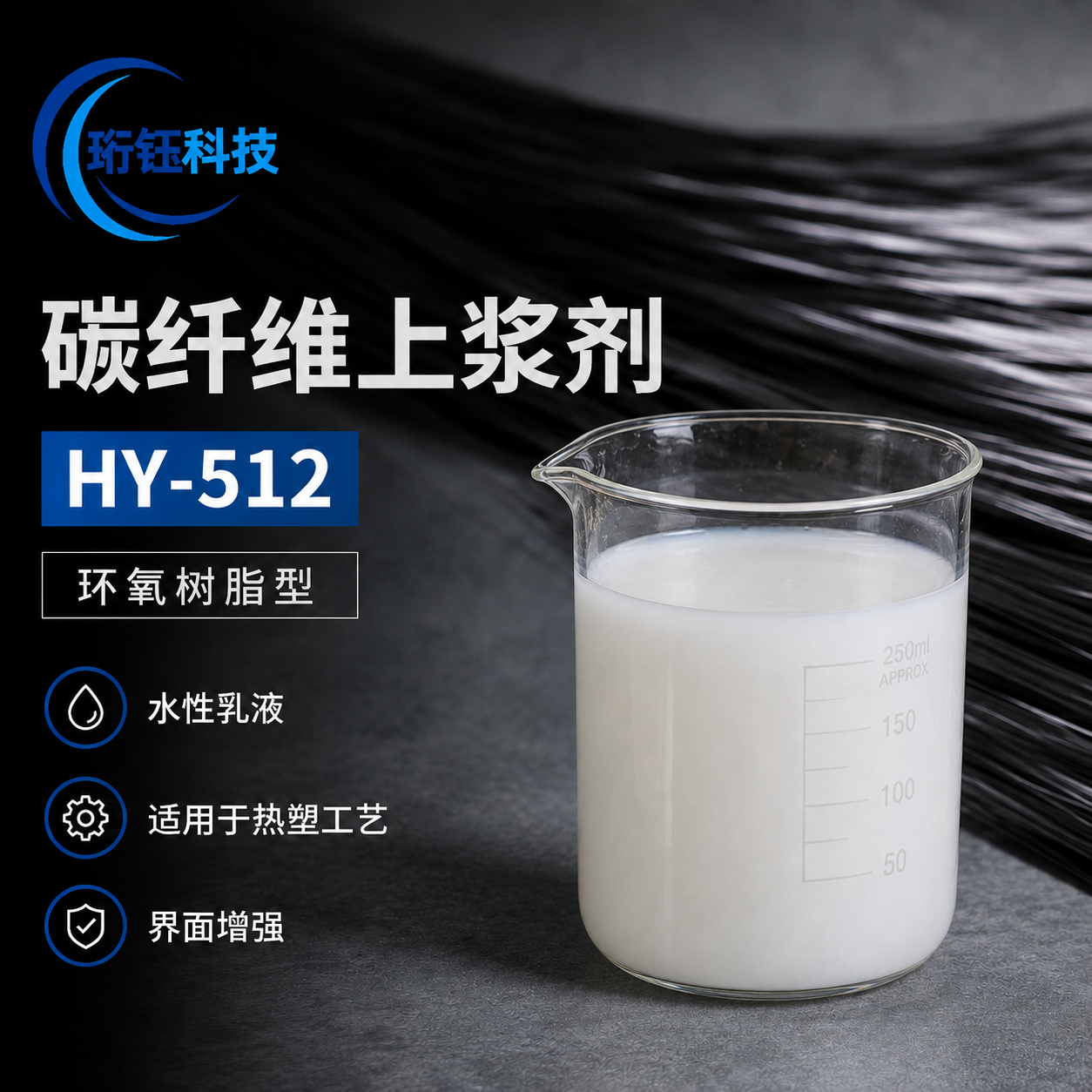

HY-512 Water-Based Epoxy Resin Fiber Sizing Agent
This product is a modified high-performance water-based epoxy resin emulsion with a self-emulsifying system design. It forms a uniform and dense protective film on the fiber surface, greatly enhancing the interfacial adhesion between fibers and resin matrices and significantly improving interfacial shear strength. It can be widely used for the sizing treatment of various chemical fibers such as carbon fiber, basalt fiber and glass fiber.
Product Features
Bundling Property
Improves fiber bundling and wear resistance, reducing fiber fuzz and breakage
Mechanical Properties
Enhances the tensile strength, flexural strength and impact resistance of composites
Interfacial Compatibility
Greatly enhances the interfacial adhesion between fibers and matrix resins, with excellent compatibility
Environmentally Friendly
Water-based emulsion system, low ppm, zero VOC emissions
High Cost-Performance Ratio
Can replace similar imported products, achieving cost reduction and efficiency improvement while ensuring performance
Technical Specifications
| Appearance | Milky white liquid |
| Solid Content | 40%±1% |
| Main Component | Modified water-based epoxy resin |
| Curing Temperature/Time | 150-220℃ (5-15 min) |
| Stability | No layering or gelation for >6 months |
| Water Solubility | Infinitely miscible with water |
Usage & Dosage
Application Method
Compatible with conventional sizing processes such as dip coating and spraying, ensuring uniform coverage of the fiber surface
Dilution Ratio
Depending on the fiber type and processing technique, it is recommended to dilute with deionized water to the desired concentration, stir evenly, and then apply
Recommended Dosage
The recommended dry pickup is 0.8%-2.5% of the fiber weight (the specific dosage should be adjusted experimentally according to fiber fineness and target performance)
Drying Conditions
Recommended drying temperature 150℃-220℃ to ensure complete evaporation of moisture and form a complete, dense coating
Packaging, Storage & Transport
Packaging Specifications: 25KG, 50KG, 200KG, 1000KG plastic drum packaging
Hazard Class: Non-hazardous
Storage Conditions: Recommended storage temperature 5℃-35℃; shelf life 3 months when unopened
Water-Based Fiber Sizing Agents Product Manual
Download the complete product technical manual, including detailed specifications and application guides for 5 product series such as HY-503, HY-509, HY-510, HY-512 and HY-518
