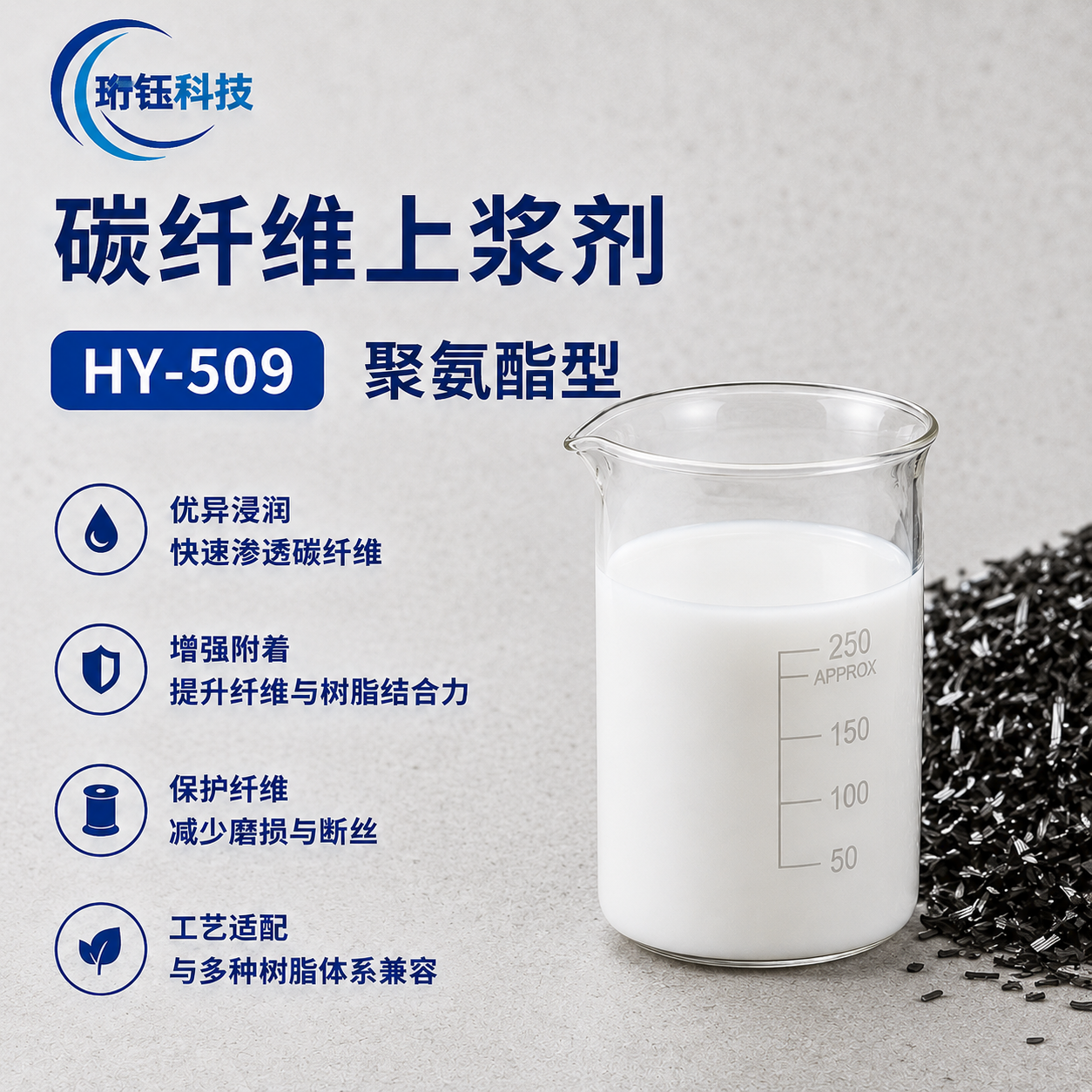

HY-509 Polyurethane Sizing Agent
This product is a high-performance specially modified macromolecular polyurethane polymer emulsion, a treatment agent specially designed for thermoplastic carbon fiber processing. It has strong interfacial adhesion with carbon fiber, effectively improving inter-fiber adhesion and bundle strength, and significantly enhancing the mechanical properties and wear resistance of composites.
Product Features
Excellent Interfacial Adhesion
Strong interfacial adhesion with carbon fiber, effectively improving inter-fiber adhesion and bundle strength
Good Thermoplastic Compatibility
Fibers treated with this product have good thermoplasticity and excellent compatibility with thermoplastic resins such as PA, PE and PU, with uniform dispersion in composite systems
Environmental Compliance
Emulsion-type formulation, solvent-free with almost no VOC emissions, environmentally compliant
Outstanding Dilution Stability
After dilution with water, it can still be used normally the next day without layering or sedimentation, suitable for large-scale production needs
Technical Specifications
| Appearance | Milky white liquid |
| Odor | Distinctive odor |
| Solid Content | 40% |
| Ionic Type | Anionic-nonionic complex |
| pH Value | 6.0-7.5 |
| Stability | No layering or oil separation at 3000rpm |
| Water Solubility | Infinitely miscible with water |
Usage & Dosage
Application Method
Compatible with conventional sizing processes such as dip coating and spraying, ensuring uniform coverage of the fiber surface
Dilution Ratio
Depending on the fiber type and processing technique, it is recommended to dilute with deionized water to the desired concentration, stir evenly, and then apply
Recommended Dosage
The recommended dry pickup is 0.8%-2.5% of the fiber weight (the specific dosage should be adjusted experimentally according to fiber fineness and target performance)
Drying Conditions
Recommended drying temperature 150℃-200℃ to ensure complete evaporation of moisture and form a complete, dense coating
Packaging, Storage & Transport
Packaging Specifications: 50KG, 200KG, 1000KG plastic drum packaging
Hazard Class: Non-hazardous
Storage Conditions: Recommended storage temperature 5℃-35℃; shelf life 6 months when unopened
Water-Based Fiber Sizing Agents Product Manual
Download the complete product technical manual, including detailed specifications and application guides for 5 product series such as HY-503, HY-509, HY-510, HY-512 and HY-518
