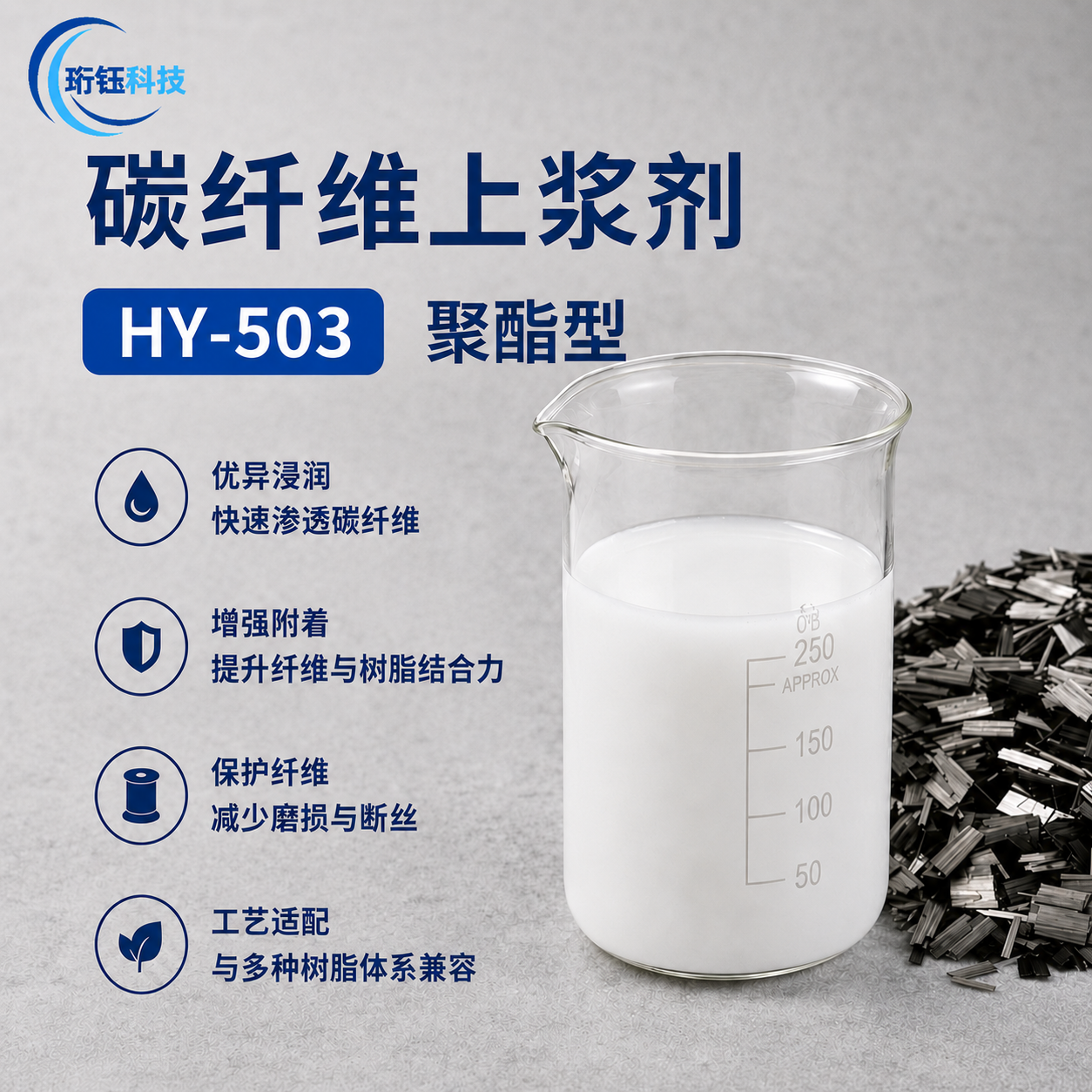

HY-503 Water-Based Polyester Sizing Agent
This product is a specially modified water-based macromolecular polymer emulsion, designed for the short-cut processing of high-performance fibers (carbon fiber, glass fiber) and the subsequent pelletizing of thermoplastic composites. By forming a tough and highly polar coating on the fiber surface, it significantly improves the processing stability of fibers during high-speed cutting and effectively enhances the interfacial adhesion between fibers and resin matrices (such as PA, PE, etc.).
Core Features
Excellent Bundling and Protection
Effectively enhances adhesion between fibers and increases bundle stiffness, reducing fuzz and static during short-cutting to ensure clean cutting and uniform dispersion
Outstanding Interfacial Reinforcement
Rich in polar functional groups, it forms strong chemical bonds or physical entanglements with thermoplastic resin matrices, greatly improving the tensile, flexural and impact strength of finished products
High-Temperature Pelletizing Stability
Good thermal stability allows it to withstand high-temperature melt shearing during pelletizing without yellowing or degradation, ensuring product appearance
Versatility and Synergy
Excellent compatibility with a variety of conventional sizing agents; when used as a secondary sizing, it produces a positive synergistic effect with a smooth feel and strong bundling force
Technical Specifications
| Appearance | Milky white liquid |
| Solid Content | 38%±2% |
| pH Value | 6.0-7.5 |
| Ionic Property | Anionic-nonionic complex |
| Main Component | Polyester |
| Curing Temperature/Time | 120-200℃ (5-30 min) |
| Stability | No layering or gelation for >6 months |
| Water Solubility | Infinitely miscible with water |
Usage & Dosage
Application Method
Compatible with conventional sizing processes such as dip coating and spraying, ensuring uniform coverage of the fiber surface
Dilution Ratio
Depending on the fiber type and processing technique, it is recommended to dilute with deionized water to the desired concentration, stir evenly, and then apply
Recommended Dosage
The recommended dry pickup is 0.8%-4% of the fiber weight (the specific dosage should be adjusted experimentally according to fiber fineness and target performance)
Packaging, Storage & Transport
Packaging Specifications: 25KG, 50KG, 200KG, 1000KG plastic drum packaging
Hazard Class: Non-hazardous
Storage Conditions: Recommended storage temperature 5℃-35℃; shelf life 6 months when unopened
Water-Based Fiber Sizing Agents Product Manual
Download the complete product technical manual, including detailed specifications and application guides for 5 product series such as HY-503, HY-509, HY-510, HY-512 and HY-518
